Description
What’s In the Box:

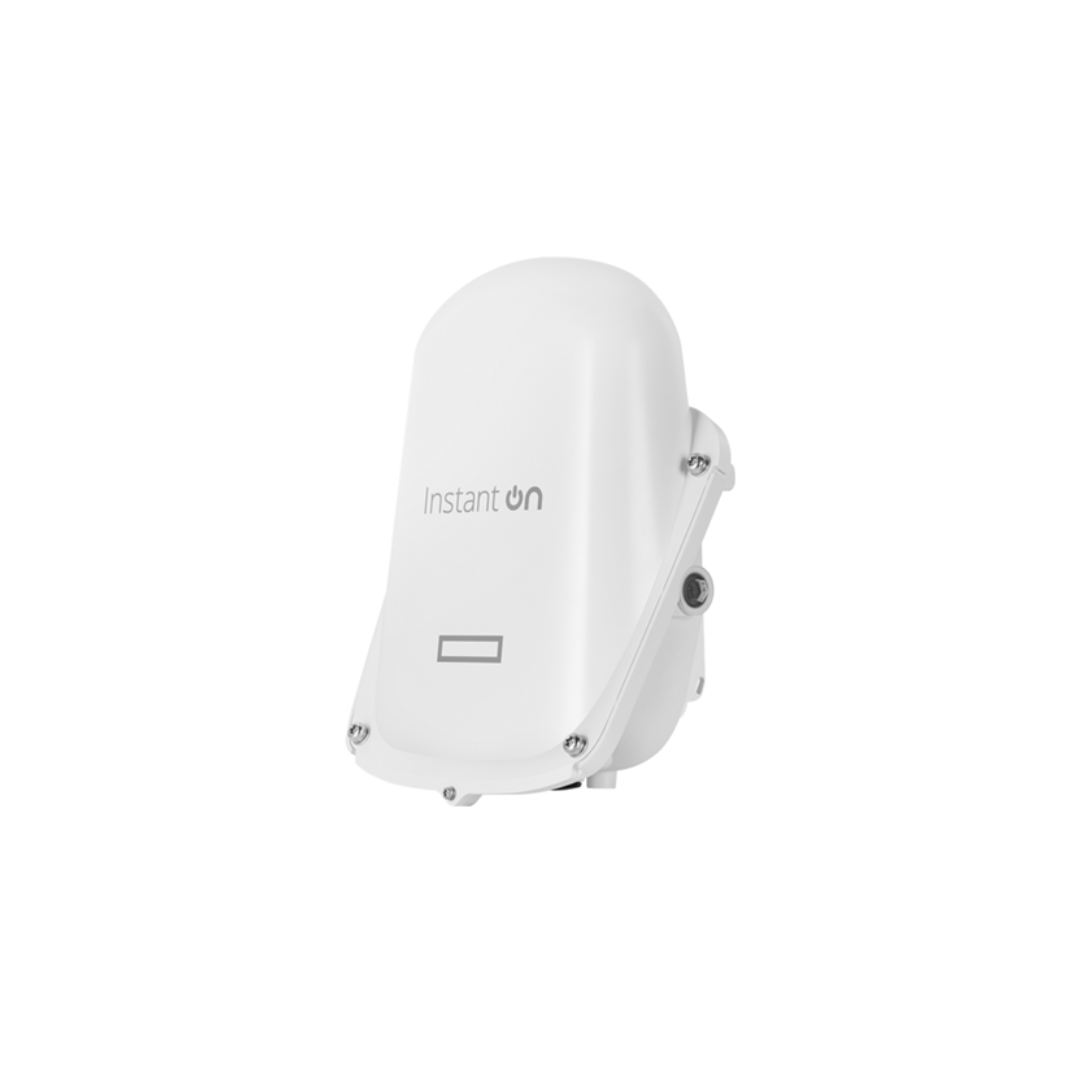

HPE Networking Instant On Access Point
Quick Start guide
Combined ceiling and wall rail mount clip
Certifications: Wi-Fi Alliance certified (WFA) 802.11ax with (Wi-Fi 6), WPA2, WPA3
Input voltage: PoE: 802.3at (class 4) DC power (12V) (Note: Power sources are sold separately unless you purchase the bundle SKU)
Wi-Fi antenna:
Antennas: Dual omni-directional 2×2 MIMO
Antenna Gain: 3.2 dBi in 2.4GHz 5.4 dBi in 5GHz
Maximum transmit power: 5GHz band: +25 dBm (+22 dBm per chain, 3 dB MIMO gain)
2.4GHz band: +25 dBm (+22 dBm per chain, 3 dB MIMO gain)
Connectivity, standard: Ultra-fast 802.11ax
Ports: 1 GbE Base-T uplink port
LED status indicators
Reset button
Kensington security slot
Mounting: Wall-mount bracket
Power consumption: Max power consumption: 14.6W (PoE)
Radio coverage: Dual-radio 802.11ax
2×2 5 GHz MIMO
2.4 GHz MIMO
Warranty: Instant On 2-year warranty includes 24X7 phone support for the first 90 days and chat support. See the warranty duration. Community support is available for the life of the product.
What’s In the Box:
HPE Networking Instant On Access Point
Quick Start guide
Combined ceiling and wall rail mount clip
